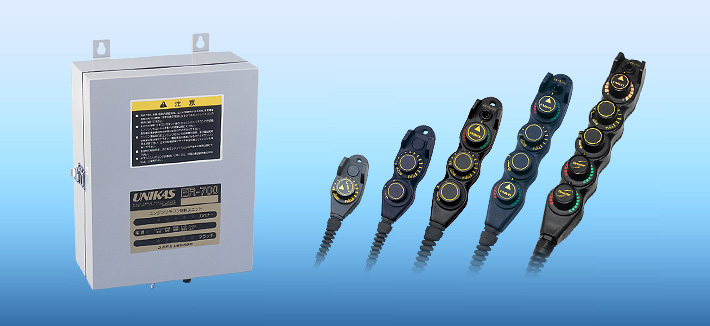

Electric engine remote control systemER-700 series
Applicable vessel
Inboard
Drive ship
Inboard/outdrive
Water jet
- The ER-700 series, complete with a full range of models, offers the most suitable system for disparate navigation and fishing styles.
- The proprietary linear motion system delivers high response across the entire stroke range. (ER-700, 770, and 780)
- Many easy-to-carry and -operate remote controllers are available.
- Capable of alarm monitoring and generating an alarm signal as a standard function with special focus on marine safety.

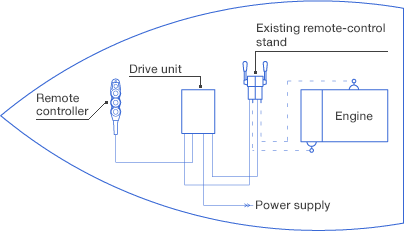

System diagram
ER-700 series specifications
| System type | USER-700 | USER-720 | USER-750 | USER-770 | USER-780 | |
|---|---|---|---|---|---|---|
| Control method | Clutch | Front/middle/rear 3-point follow-up control | - | Front/middle/rear 3-point follow-up control | ||
| Governor | Continuous follow-up control | Continuous follow-up control | - | |||
| Maximum thrust | Clutch | 490N | 421N | - | 490N | |
| Governor | 637N | 509N | 637N | - | ||
| Operating speed | Clutch | Front/middle/rear Approx. 0.75 s | - | Approx. 0.75 s | ||
| Governor | Entire stroke | Approx. 3 s | - | |||
| Stroke | Clutch | 17mm～115mm | - | 17mm～115mm | ||
| Governor | 17mm～115mm | - | ||||
| Power supply | DC24V (DC12V) | |||||
| Drive unit mass (kg) | 15 | 13 | 8.5 | |||
List of systems

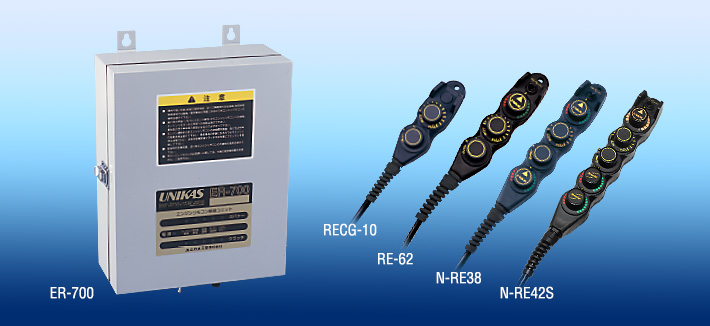

USER-700

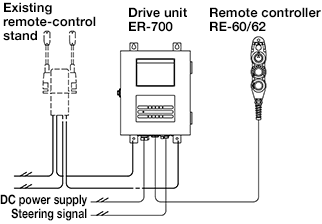

Schematic diagram USER-700
Two-lever/two-dial/main engine
| Type | Component | |||||
|---|---|---|---|---|---|---|
| Drive unit | Remote controller | Lever-type remote controller | Foot clutch | Automatic repositioning system | Relay box | |
| USER-700 | ER-700 | RE-62 | ||||
| USER-700-EE | ER-700 | RE-62 (2 units) |
BX-21C | |||
| USER-700-EX | ER-700 | RE-62 | RX-35 | BX-21C | ||
| USER-700-EEP | ER-700 | RE-62 (2 units) |
BX-190A | |||
| USER-700-EXP | ER-700 | RE-62 | RX-35 | BX-190A | ||
| USER-700B-FS | ER-700B | RE-60 | FS-30 | BX-29 | ||
| USER-700B-AT | ER-700B | RE-60 | AT-32 | |||

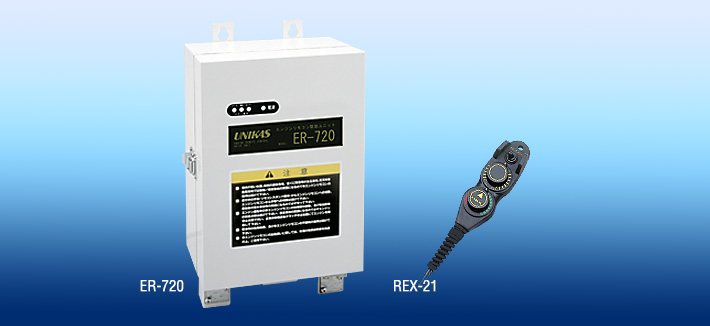

USER-720

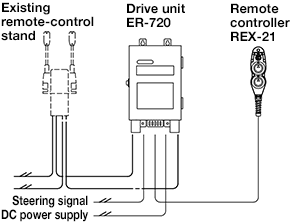

Schematic diagram USER-720
Two-lever/two-dial/main engine/thruster
| Type | Drive unit | Remote controller |
|---|---|---|
| USER-720 | ER-720 | REX-21 |
| RE-85 |

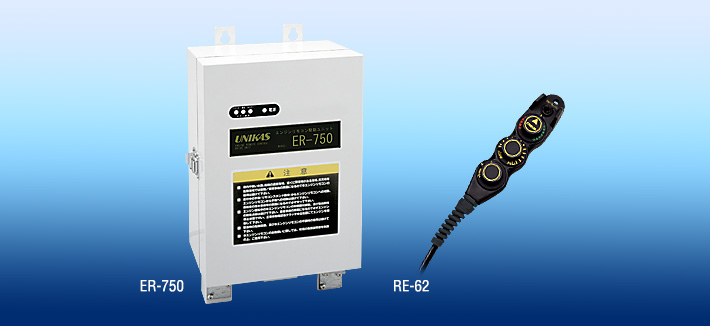

USER-750

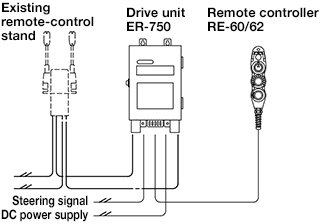

Schematic diagram USER-750
Two-lever/two-dial/main engine (drive ship)
| Type | Drive unit | Remote controller |
|---|---|---|
| USER-750 | ER-750 | RE-60 |
| RE-62 |
USER-770

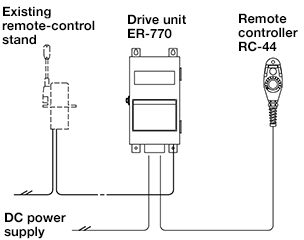

Schematic diagram USER-770
Trolling/governor
| Type | Drive unit | Remote controller |
|---|---|---|
| USER-770 | ER-770 | RC-44K |

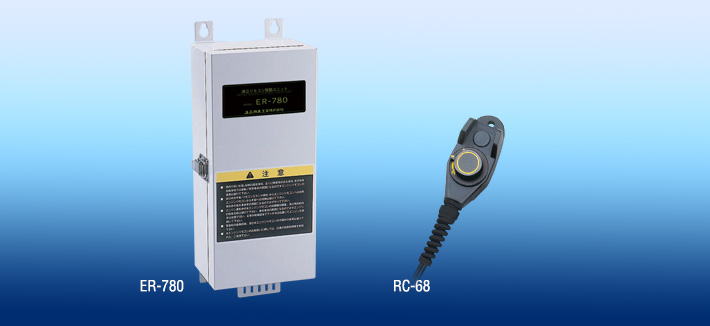

USER-780

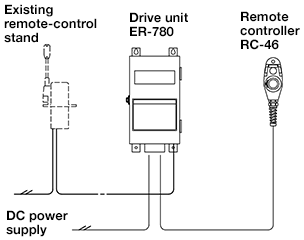

Schematic diagram USER-780
Repositioning system/clutch
| Type | Drive unit | Remote controller |
|---|---|---|
| USER-780 | ER-780 | RC-68 |

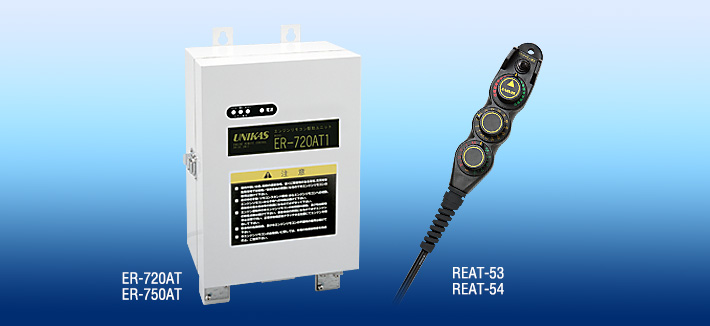

USER-720AT

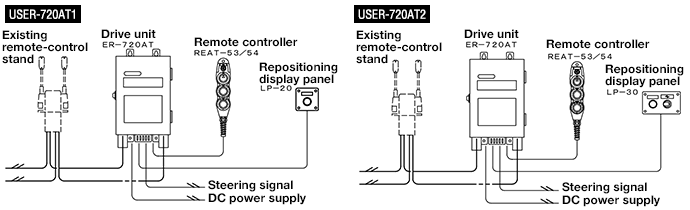

Schematic diagram USER-720AT1, USER-720AT2
| Type | Drive unit | Remote controller | Repositioning display panel |
|---|---|---|---|
| USER-720AT1 | ER-720 | REAT-53 | LP-20 |
| USER-720AT2 | ER-720 | REAT-54 | LP-30 |
USER-750AT
| Type | Drive unit | Remote controller | Repositioning display panel |
|---|---|---|---|
| USER-750AT1 | ER-750 | REAT-53 | LP-20 |
| USER-750AT2 | ER-750 | REAT-54 | LP-30 |
