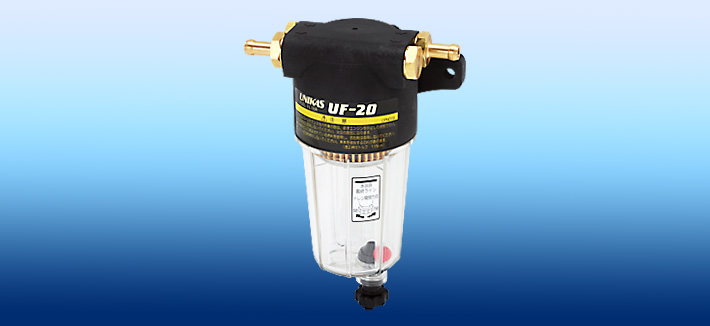

Fuel filter for outboard enginesUF series
Water intruding in the fuel oil tank and moisture due to condensation will significantly damage the fuel oil system, including the injection nozzle. This filter prevents problems in advance and protects the outboard engine.
Applicable vessel
Outboard
- Four ports make pipe routing easy.
- Keeps out 99.9% of water-in-fuel-oil that 4-stroke engines dislike.
- The body is made of light, robust, and corrosion-free engineering plastic.
- Equipped with a drain valve and water level float ball as standard equipment.
System diagram
List of systems
| Type | Applicable engine horsepower kW (ps) |
Initial filtration flow (L/H) |
Water filtering capability (%) |
Filtration precision (μ) |
Water tank volume (cm³) |
Connector diameter | Mass (kg) |
|
|---|---|---|---|---|---|---|---|---|
| IN | OUT | |||||||
| UF-20 | 〜257（350） | 200 | 99 | 10 | 160 | Hose bore: φ6–φ8 | 0.48 | |
* The applicable engine horsepower is only indicative.
